self-centering NBR FKM metal rubber bonded seal composite gasket

Type	ID(mm)	Allowed Error(mm)	OD(mm)	Allowed Error(mm)	For Screw
Φ6	6.4	+0.12	12	+0.12	M6
Φ8	8.4				14		M8
Φ10	10.4				16		M10(G1/8'')
Φ12	12.4				18		M12
Φ13	13.2			20	+0.15	NON-STANDARD
Φ14	14.4			20			M14(G1/4'')
Φ15	15.2			23			NON-STANDARD
Φ16	16.4			23			M16
Φ17	17.2			25			NON-STANDARD
Φ18	18.4			25			M18(G3/8'')
Φ20	20.5	+0.14	28			M20
Φ21	21.2			30			NON-STANDARD
Φ22	22.5			30			M22(G1/2'')
Φ24	24.5			32	+0.2	M24
Φ26	26.5			35			NON-STANDARD
Φ27	27.5			35			M27(G3/4'')
Φ30	30.5			38			M30
Φ33	33.5	+0.17	42			M33(G1/4'')
Φ36	36.6			46			M36
Φ39	39.6			50			M39
Φ42	42.6			53	+0.25	M42(G1'')
Φ45	45.6			56			M45
Φ48	48.7			60			M48(G2'')
Φ52	52.7	+0.20	66			M52
Φ60	60.7			75			M60

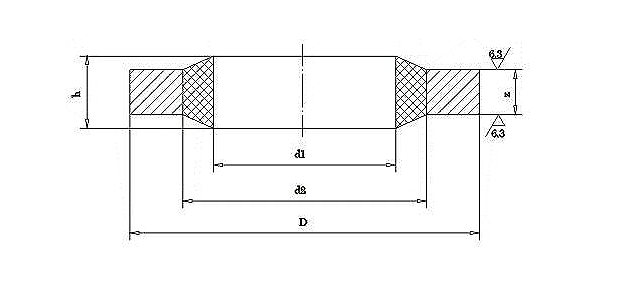

Bonded gasketThe combined gasket is made of a rubber ring and a metal ring integrally bonded and vulcanized. It is a sealing ring used to seal the thread and flange connection. The ring includes a metal ring and a Rubber Gasket.





Working pressure: ≤40 Mpa Temperature: -25℃ ～ +100℃ Medium: hydraulic oil Material: rubber, metal
It is suitable for the pressure system sealing of oil-based pipeline systems for welding, ferrules, expanded pipe joints, screw plugs and mechanical devices to prevent leakage of oil, fuel, water and medicines. Because of its simple structure, efficient sealing, and low price, it has been widely used in machinery manufacturing.
10 years of rubber seal products manufacturer
26 years of rubber industry technical experience

More than 5000 sets of molds

Nearly 20,000 seal specifications

High-quality raw materialsExcellent workmanship Strict quality inspections
Workshop Testing Equipment
High-quality raw materials, standard production processes, and strict quality inspections, Longyin Sealing strictly complies with the standard quality management system to produce sealed products.

Certificate By seaDelivery time: about 25-45 days.By RailIf you are in Europe or Central Asia, railways are also a good choice.Delivery time: about 14-25 days.
By AirFor some small and light products, air freight is our main choice.
Delivery time: about 5-8days. contact usName:Jack Zhao Tel:(+86) 15923236922Whats app:(+86)15923239622
Email: longseals@gmail.com
Address: 22th building, Yingtian GuangdianGonggu Industrial Area, Caijia Street, Beibei District, Chongqing, China Q1. What is the payment term?
A: We accept a T/T 30% deposit and a 70% balance of a current bill of lading or a letter of credit. West Union, VISA is also
accepted.

Q2. What is the normal delivery time for product orders?
A: The average delivery time of the sample is 1-2 weeks. If the mold production is involved, the delivery cycle of the production
mold is 10 days, and the average production time after the sample is approved is 1-2 weeks.

Q3. What is your standard packaging?
A: All goods will be packed in PE bags and then packed in cartons and filled with trays. Special packaging methods are accepted
when needed, but charges may apply.

Q4. Which certificate do you have?
A1: Since 2012, we have passed ISO9001:2008: We have various rubber compounds certified by ROHS. 4 patents, still applying
for more patents.

Q5: How to check the quality of bulk orders?
A1: Our inspection procedures include, first inspection/patrol inspection/initial inspection/full inspection/shipment inspection.
A2: We provide quality certification to all customers before delivery, such AS measurement reports, material data sheets, etc.
A3: We accept third party inspections such as SGS, TUV, INTERTEK, BV, etc.

Q6: How do I choose a raw compound for my application?
A: With years of experience in using a variety of materials, we can help you choose the material that best suits your needs,
keeping in mind the cost of materials.

Q7: Do you use any international standards for rubber products?
A: Yes, we mainly use the ASTM D2000 standard to define the quality of rubber materials according to ISO3302, ISO2768 and so on.

Q8: Can you provide materials of different colors?
A: Yes, we can produce custom Molded Rubber and silicone rubber products in different colors. Color codes are required when
ordering.

Q9: From which side can you produce which materials?
A: NBR, EPDM, silicone, FKM, NEOPRENE (CR), NR, IIR, SBR, ACM, AEM, fluorosilicon (FVMQ), FFKM, liquid silica gel, and the like.

Q10: What other services does LongYin seal offer?
A: We have an internal mold function that can be maintained and maintained; we have a cold chamber for elastomer storage to extend
product life.

Contact us if you need more details on Self-centering Gasket. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Bonded Seal、Bonded Washer. If these products fail to match your need, please contact us and we would like to provide relevant information.

Product Categories : Compound Gasket
