Home > Products > Compound Gasket > bonded sealing combination gasket, composite gasket, self-centering metric size adhesive rubber metal combination ring

bonded sealing combination gasket, composite gasket, self-centering metric size adhesive rubber metal combination ring

Product Description

Type
ID(mm)
Allowed Error(mm)
OD(mm)
Allowed Error(mm)
For Screw
Φ6
6.4






+0.12
12


+0.12
M6
Φ8
8.4
14
M8
Φ10
10.4
16
M10(G1/8'')
Φ12
12.4
18
M12
Φ13
13.2
20






+0.15
NON-STANDARD
Φ14
14.4
20
M14(G1/4'')
Φ15
15.2
23
NON-STANDARD
Φ16
16.4
23
M16
Φ17
17.2
25
NON-STANDARD
Φ18
18.4
25
M18(G3/8'')
Φ20
20.5





+0.14
28
M20
Φ21
21.2
30
NON-STANDARD
Φ22
22.5
30
M22(G1/2'')
Φ24
24.5
32





+0.2
M24
Φ26
26.5
35
NON-STANDARD
Φ27
27.5
35
M27(G3/4'')
Φ30
30.5
38
M30
Φ33
33.5




+0.17
42
M33(G1/4'')
Φ36
36.6
46
M36
Φ39
39.6
50
M39
Φ42
42.6
53



+0.25
M42(G1'')
Φ45
45.6
56
M45
Φ48
48.7
60
M48(G2'')
Φ52
52.7

+0.20
66
M52
Φ60
60.7
75
M60

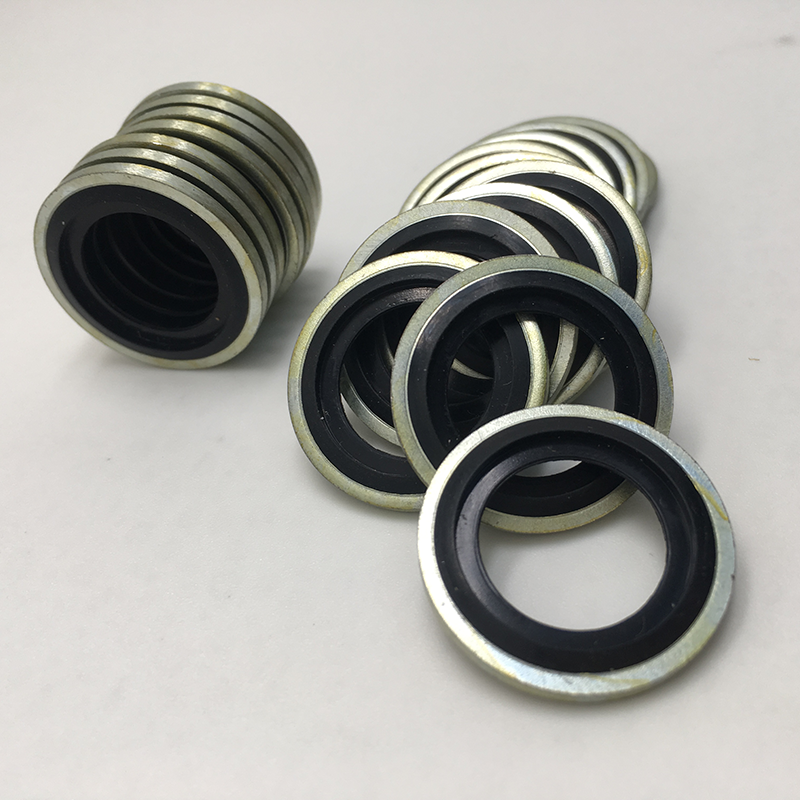

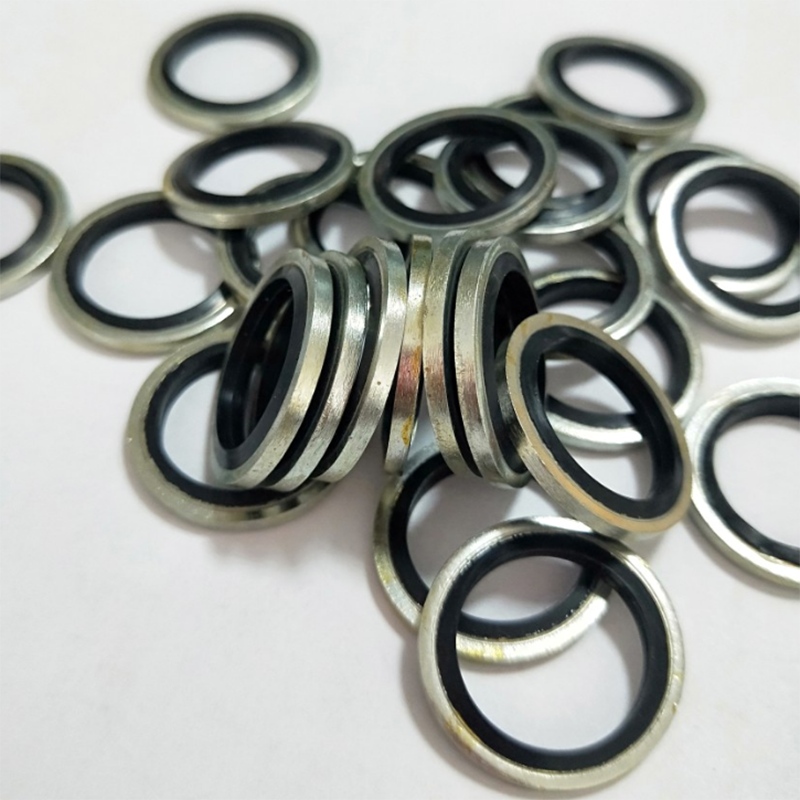

Bonded gasketThe combined gasket is made of a rubber ring and a metal ring integrally bonded and vulcanized. It is a sealing ring used to seal the thread and flange connection. The ring includes a metal ring and a Rubber Gasket.





Working pressure: ≤40 Mpa Temperature: -25℃ ~ +100℃ Medium: hydraulic oil Material: rubber, metal
It is suitable for the pressure system sealing of oil-based pipeline systems for welding, ferrules, expanded pipe joints, screw plugs and mechanical devices to prevent leakage of oil, fuel, water and medicines. Because of its simple structure, efficient sealing, and low price, it has been widely used in machinery manufacturing.
Company Profiles 10 years of rubber seal products manufacturer
26 years of rubber industry technical experience

More than 5000 sets of molds

Nearly 20,000 seal specifications

High-quality raw materialsExcellent workmanship Strict quality inspections Important Note:We are a source manufacturer specializing in the production of seals, with a complete range of seals, but due to the following reasons, our website cannot display all of them: 1. The factory focuses on production and R&D, and only has a small amount of energy on website maintenance; 2. In order to protect clients’ trade secrets, many products are inconvenient to display. We sincerely hope that you can understand this: We can provide products with high quality and competitive prices. Please try to contact our customer service for more details.
Details needed for customizationIn order to complete the product customization faster and more accurately, please provide us with the following information. Non-Standard O RingsSize:According to different products, usually include inner diameter, wire diameter, width, height, etc.Material:NBR/HNBR/FKM/EPDM/VMQ/FFKM,etc.Hardness:40~90 shoreColor:Please provide Pantone color number or sample.Other non-standard products For non-standard products, please provide the following information AS much as possible so that we can better understand your needs:Design drawings;Sample;Photo & video;Product purpose and usage scenarios(If you don't mind).
Workshop Testing Equipment
High-quality raw materials, standard production processes, and strict quality inspections, Longyin Sealing strictly complies with the standard quality management system to produce sealed products.

Certificate By seaDelivery time: about 25-45 days.By RailIf you are in Europe or Central Asia, railways are also a good choice.Delivery time: about 14-25 days.
By AirFor some small and light products, air freight is our main choice.
Delivery time: about 5-8days.

Contact us if you need more details on Combination Gasket. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Bonded Seal Brass、Rubber Metal Combination Ring. If these products fail to match your need, please contact us and we would like to provide relevant information.
